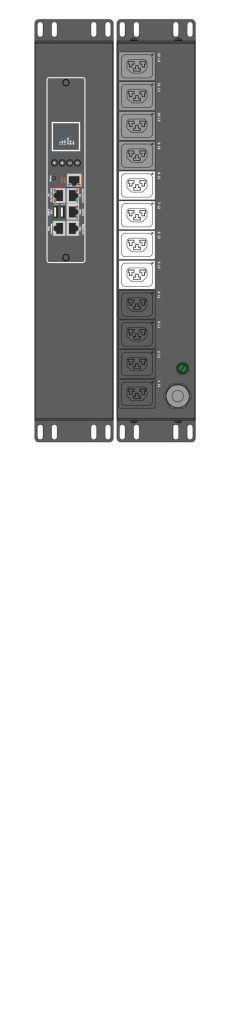

IEXPOMS601216A3PH

Features

Technology

POMS (Per Outlet Metering & Switching)

Energy Metering

Voltage(V), Current(A), Active Power(W), Apparent Power (VA), Reactive Power (var), PF, Frequency(Hz), kWh

Metering per Input Line

Yes (Branch Circuit and Total Current) Accuracy 1%

Metering per Output Receptacle

Yes

Remote Outlet Switching

Yes

Ethernet Port

2 Gigabit Ethernet ports to acces the PDU from 2 diﬀerent networks

Networking Protocols

DHCP, IPv4 and IPv6, DNS, http / https, SSHv.2, SNMP v1 / v2c / v3, SNMP TRAPS / SETS / GETS, SMTP, Modbus , TCP, RADIUS, Syslog, TLS 1.3, SNTP, ARP, ICMP, ICMPv6, UDP, NDP

PDU Cascading

16 PDUs

Power Share

Yes

Display

Replaceable Hot Swapable controller with 4 button OLED display

Residual Current Monitoring

No

Rack Acces Control

Compatible with DCIM solutions

USB Ports

2 USB A ports WiFi networking,webcam,PDU configuration and mobile interface

Environmental Sensors

All in one Temperature and Humidity sensor with 2 digital inputs (for connect air flow, door sensor, water leak, smoke detector and Vibration sensor) plug and play bus allows to connect 8 EMD devices in one PDU

Input

Plug

IEC60309 3P+N+E 6h 16A 380-415V

Lead Length

3 meter

Cable Type

H07RN-F5G2.5 mm²

Max. Input Load

16A

Rated Input Voltage

380-415V three phase

Frequency

50-60Hz

Power Capacity

11kW

Output

Rated Output Voltage

190-250V Single phase

Output Types

12 IEX (C13/C19) combo with LED (Max rate 16A) EN61984+UL498 certified

Overload Protection

No

Chassis

Dimensions (W x D x H)

482.8 x 88.4 x 220 mm

Color

RAL 9004 black powder coat

Mounting Options

(2) Metal Bracket

Required Torque for Mounting Screws

≥2.54N·m (25.9kgf-cm or 22.4 in-lbs)

Operating Environment

Temperature Range

0º to 60º C (30º to 140º F)

Humidity

0 - 95 %

Eleva

0 - 4000 Meters

CONFORMANCE

IEC 62368-1 (Third Edition)

Product feature

Feature 1

Feature 2

Feature 3

Feature 4

Build-to-Order

A build-to-order system that enables us to produce client-specific products not dependent on quantity within just a few weeks. The backbone of our business ensures total control of all processes, from quote to invoice.
