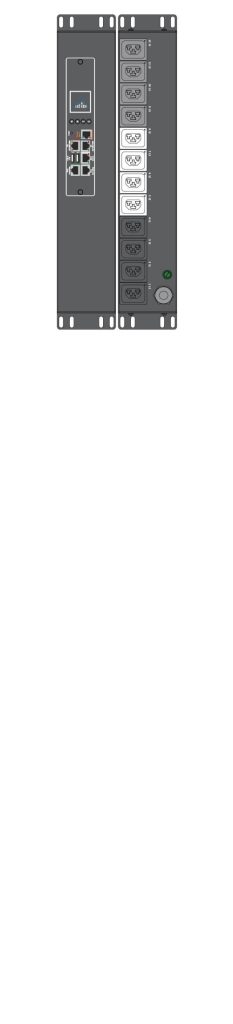

IEXPOM601216A3PH

Features

Technology

POM (Per Outlet Metering)

Energy Metering

Voltage(V), Current(A), Active Power(W), Apparent Power (VA), Reactive Power (var), PF, Frequency(Hz), kWh

Metering per Input Line

Yes (Branch Circuit and Total Current) Accuracy 1%

Metering per Output Receptacle

Yes

Remote Outlet Switching

No

Ethernet Port

2 Gigabit Ethernet ports to acces the PDU from 2 diﬀerent networks

Networking Protocols

DHCP, IPv4 and IPv6, DNS, http / https, SSHv.2, SNMP v1 / v2c / v3, SNMP TRAPS / SETS / GETS, SMTP, Modbus , TCP, RADIUS, Syslog, TLS 1.3, SNTP, ARP, ICMP, ICMPv6, UDP, NDP

PDU Cascading

16 PDUs

Power Share

Yes

Display

Replaceable Hot Swapable controller with 4 button OLED display

Residual Current Monitoring

No

Rack Acces Control

Compatible with DCIM solutions

USB Ports

2 USB A ports WiFi networking,webcam,PDU configuration and mobile interface

Environmental Sensors

All in one Temperature and Humidity sensor with 2 digital inputs (for connect air flow, door sensor, water leak, smoke detector and Vibration sensor) plug and play bus allows to connect 8 EMD devices in one PDU

Input

Plug

IEC60309 3P+N+E 6h 16A 380-415V

Lead Length

3 meter

Cable Type

H07RN-F5G2.5 mm²

Max. Input Load

16A

Rated Input Voltage

380-415V three phase

Frequency

50-60Hz

Power Capacity

11kW

Output

Rated Output Voltage

190-250V Single phase

Output Types

12 IEX (C13/C19) combo (Max rate 16A) EN61984+UL498 certified

Overload Protection

No

Chassis

Dimensions (W x D x H)

482.8 x 88.4 x 220 mm

Color

RAL 9004 black powder coat

Mounting Options

(2) Metal bracket

Required Torque for Mounting Screws

≥2.54N·m (25.9kgf-cm or 22.4 in-lbs)

Operating Environment

Temperature Range

0º to 60º C (30º to 140º F)

Humidity

0 - 95 %

Eleva

0 - 4000 Meters

CONFORMANCE

IEC 62368-1 (Third Edition)

Product feature

Feature 1

Feature 2

Feature 3

Feature 4

Build-to-Order

A build-to-order system that enables us to produce client-specific products not dependent on quantity within just a few weeks. The backbone of our business ensures total control of all processes, from quote to invoice.
