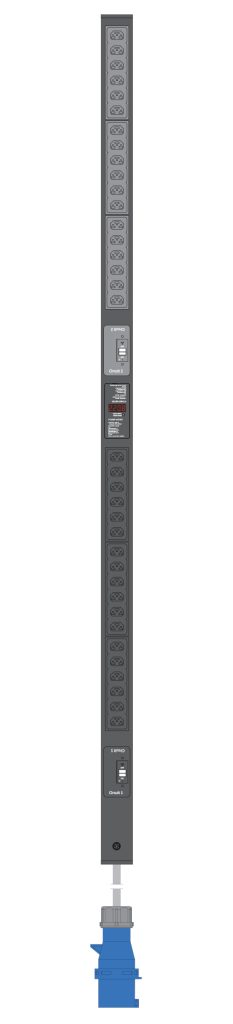

IEXCBPM453632AV

Features

Technology
PM (Power Meter)
Energy Metering
Voltage(V), Current(A), Active Power(kW), Power Factor, kWh
Metering per Input Line
Yes (Branch Circuit and Total Current) Accuracy 1.5%
Metering per Output Receptacle
No
Remote Outlet Switching
No
Ethernet Port
No
Networking Protocols
No
PDU Cascading
No
Power Share
No
Display
4 Digital-7 Segment Display LED
Residual Current Monitoring
No
USB Ports
No
Environmental Sensors
No

Input

Plug
IEC 60309 1P+N+E 6h 32A 250V SINGLE PHASE
Lead Length
3 meter
Cable Type
H07RN-F3G4.0 mm²
Max. Input Load
32A
Rated Input Voltage
380-415V three phase
Frequency
50-60Hz
Power Capacity
7360W

Output

Rated Output Voltage
190-250V Single phase
Output Types
36 IEX (C13/C19) combo (Max rate 16A) EN61984+UL498 certified
Overload Protection
(2) 1 Pole Carling 16A L Series L31-B0-24-616-H12-D3

Chassis

Dimensions (W x D x H)
1512 x 55 x 55.4 mm
Color
RAL 9004 black powder coat
Mounting Options
4 mounting options (see page 2)
Required Torque for Mounting Screws
≥2.54N·m (25.9kgf-cm or 22.4 in-lbs)

Operating Environment

Temperature Range
0º to 60º C (30º to 140º F)
Humidity
0 - 95 %
Elevation
0 - 4000 Meters
CONFORMANCE
IEC 62368-1 (Third Edition)

Product feature

Feature 1
Feature 2
Feature 3
Feature 4
Download Technical Documents PDF

Build-to-Order

A build-to-order system that enables us to produce client-specific products not dependent on quantity within just a few weeks. The backbone of our business ensures total control of all processes, from quote to invoice.

Do not see what you need, get in touch
